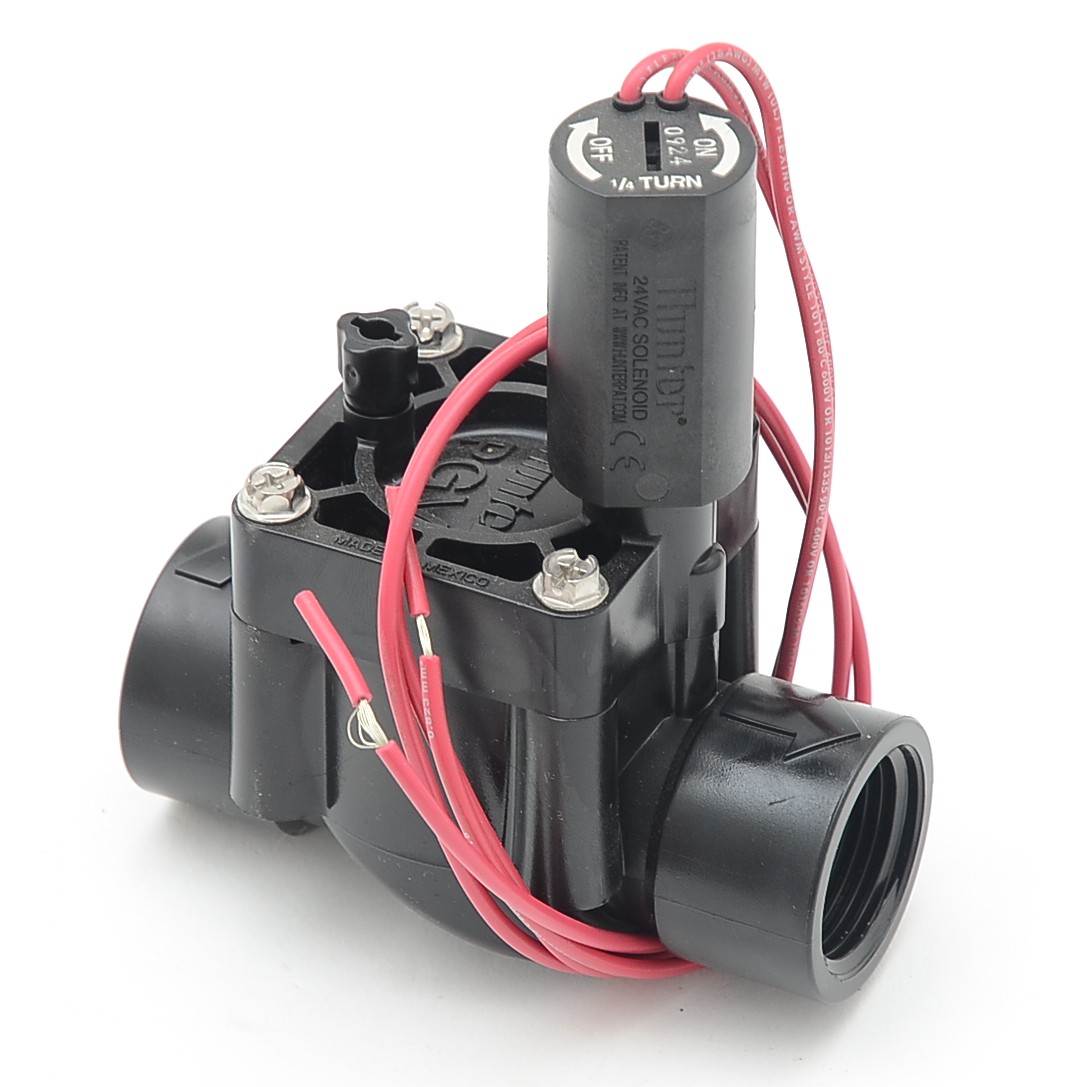

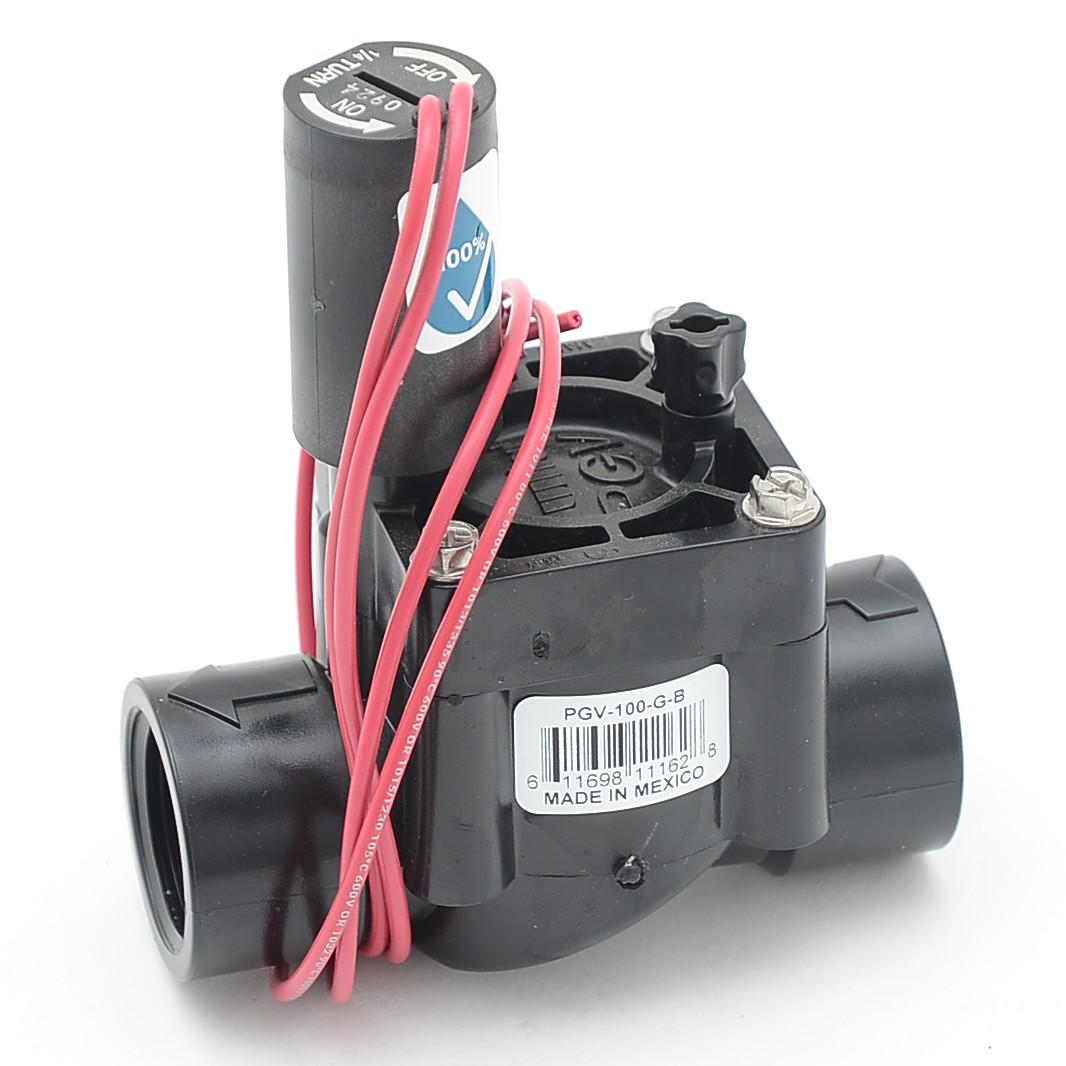

Hunter DV100 25mm Control Valve
Pay over 3 EQUAL zero-interest instalments of R134,55 with PayJustNow.
Find out how...
HOW IT WORKS
PayJustNow allows you to pay for your purchase over 3 payments with 0% interest and no fees. Pay a third at checkout and receive your goods immediately. The remaining two instalments are debited on your selected instalment dates.
Browse online or in-store and proceed to checkout
Choose PayJustNow as your payment method
Create your account and receive an instant approval decision
Complete your transaction
WHAT YOU WILL NEED
Be over 18 years old
Be a South African resident
Have a debit or credit card
Have a valid email address
0% INTEREST. 3 PAYMENTS. NO STRESS.
WHY PAY ANY OTHER WAY?
R403,65
The Hunter DV100 valve is the premium valve product chosen by more professionals than any other valve on the market. Its long history of reliable performance makes it a good choice for your system.
Use DV/DVF series valves in locations where the use of a separate pressure vacuum breaker (PVB) or a double-check valve is required by city codes to protect against backflow. Check your local city codes to determine what type of valves are required.
Works with any standard sprinkler timer.
Specifications:
– Pressure: 1,0 to 10,4 bar
– 100-DV Non-Flow Control Model: 0,05 to 9.085 m3/h; 0,01 to 2,52 l/s. For flows below 0,68 m3/h; 0,19 l/s
– Water temperature: Up to 43?C
– Ambient air temperature: Up to 52?C
– 24 VAC 50/60Hz (cycles per second) solenoid power requirement: 0.450A inrush current, 0.25A holding current
– Solenoid coil resistance: 38 Ohms
Features:
– Double-filtered (diaphragm and solenoid) pilot-flow design for maximum reliability and grit resistance
– Buna-N, balanced pressure diaphragm with self-cleaning 90 mesh (200 microns) pilot water filter and captive spring
– Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 microns) solenoid filter
– Unique, easy-to-turn patented pressure assisted flow control mechanism (DVF models only)
– External bleed to manually flush the system of dirt and debris during installation and system start-up
– Internal bleed for spray-free manual operation
– Operates in low-flow and Landscape Drip applications when a 200 mesh filter is installed upstream
– Not recommended for use with two-wire control systems
- 1inch(25mm) female inlet/outlets
- Heavy duty plastic construction
Additional information
| Weight | 0,3 kg |
|---|---|
| Dimensions | 15 × 6 × 10 cm |
| Brand | Aqua Aero Vitae |
