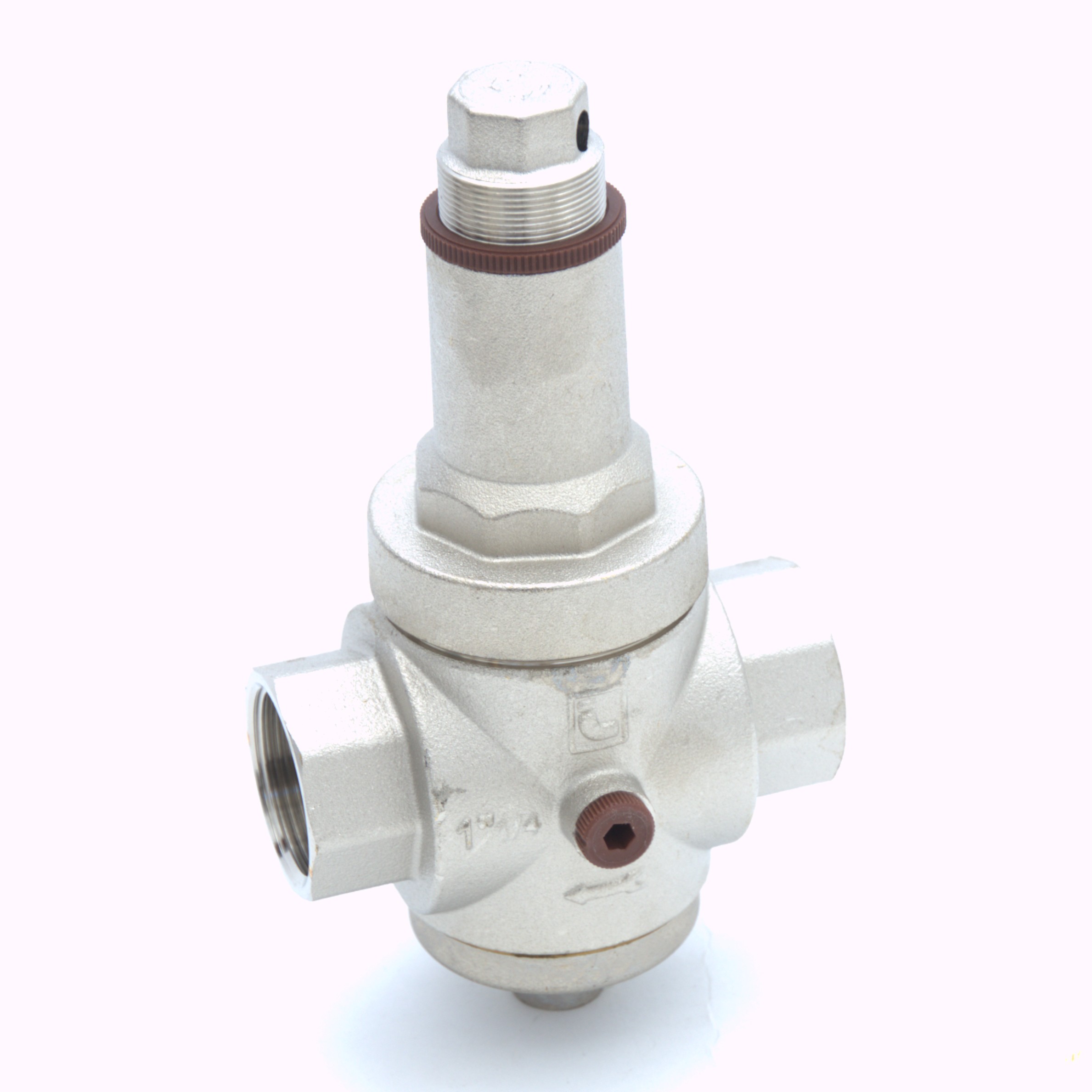

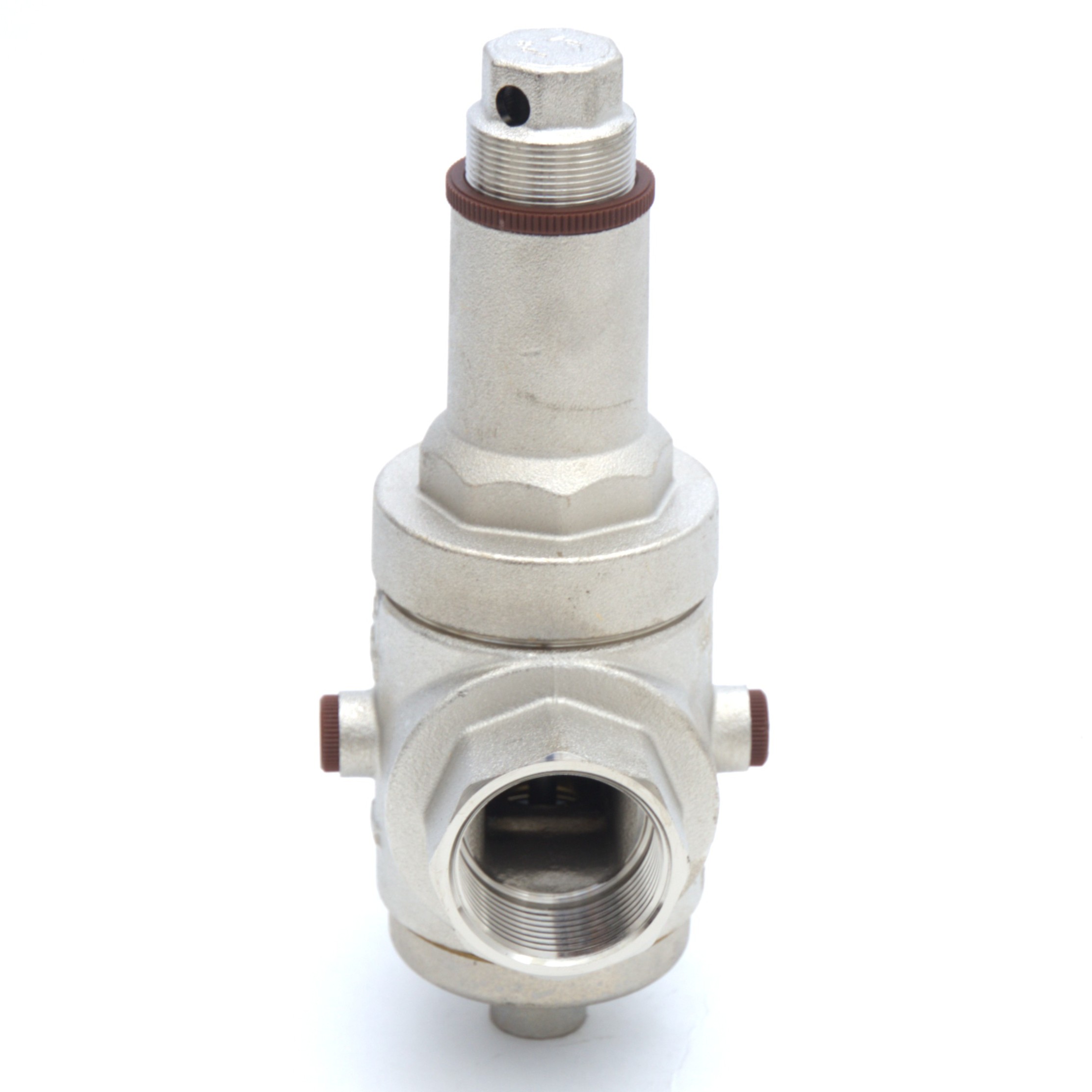

32mm Pressure Reducing Valve
Pay over 3 EQUAL zero-interest instalments of R770,50 with PayJustNow.
Find out how...
HOW IT WORKS
PayJustNow allows you to pay for your purchase over 3 payments with 0% interest and no fees. Pay a third at checkout and receive your goods immediately. The remaining two instalments are debited on your selected instalment dates.
Browse online or in-store and proceed to checkout
Choose PayJustNow as your payment method
Create your account and receive an instant approval decision
Complete your transaction
WHAT YOU WILL NEED
Be over 18 years old
Be a South African resident
Have a debit or credit card
Have a valid email address
0% INTEREST. 3 PAYMENTS. NO STRESS.
WHY PAY ANY OTHER WAY?
R2311,50
This pressure reducing valve provides reliable pressure control, extending the lifespan of plumbing systems while ensuring safe and efficient water flow. It is designed to regulate and maintain a consistent downstream water pressure in plumbing and water supply systems. By automatically reducing higher incoming pressure to a safe and stable level, the valve protects pipes, fittings, and appliances from excessive pressure that can cause leaks, damage, and premature wear.
Manufactured from high-quality corrosion-resistant materials, the valve incorporates a precision spring-loaded diaphragm mechanism that continuously adjusts to fluctuations in inlet pressure. This ensures a steady outlet pressure regardless of variations in the supply line, improving system efficiency and reliability.
The valve is easily adjustable, allowing installers to set the desired downstream pressure according to system requirements. Its compact and durable design makes it suitable for both residential and commercial water installations.
Key Features
-
Function: Automatically reduces and stabilizes water pressure
-
Construction: Durable corrosion-resistant body for long service life
-
Operation: Spring-loaded diaphragm for precise pressure regulation
-
Adjustability: Easily adjustable outlet pressure setting
-
Protection: Prevents pipe damage, leaks, and excessive water pressure
-
Installation: Suitable for domestic, commercial, and irrigation systems
Typical Applications
-
Residential water supply systems
-
Commercial and industrial plumbing installations
-
Irrigation and landscaping systems
-
Protection of water heaters, appliances, and fixtures
-
Any water system requiring controlled downstream pressure
Technical Specifications:
- Compensated piston operation.
- 1.25mm Female threaded connection (25mmNB)
- Body in nickel-plated brass
- Minimum and maximum working temperatures: 0°C, 80°C.
- Maximum inlet pressure: 25bar.
- Outlet pressure adjustable to 1-6bar
- Factory pre-adjustment 3 bar.
- Outlet pressure gauge connection 1/4” on both sides.
- Threads ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Additional information
| Weight | 05 kg |
|---|---|
| Dimensions | 150 × 100 × 100 cm |
